Series check valve

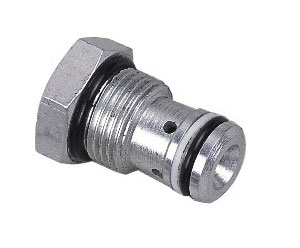

Model LCA is a threaded cartridge valve with conical sealing.
When the pressure difference of check valve Port A and B (Reverse is opposite) reaches the preset spring force,the valve core goes up to open the valve port and fluid will flow from Port 1 to Port 2. The core closes in case of reverse Flow.
When the pressure difference of check valve Port A and B (Reverse is opposite) reaches the preset spring force,the valve core goes up to open the valve port and fluid will flow from Port 1 to Port 2. The core closes in case of reverse Flow.
Technical specification
| Model |
LCA-4- |
LCA-6- | |||
|
31.5a-00 |
31.5a-02 |
31.5a-00 |
31.5b-00 |
F31.5b-00 | |
| Rated Flow (l/min) |
20 |
30 |
25 |
30 |
30 |
| Opening Pressure (MPa) |
0.05 |
0.05 |
0.4 |
0.4 |
0.4 |
| Reverse and obverse |
obverse |
Reverse | |||
| Pressure (MPa) |
31.5 | ||||
| Hydraulic Fluid |
Mineral Oil, Phosphate | ||||
| Viscosity (mm2/s) |
2.8~320 | ||||
| Fluid Temp. () |
-20~70 | ||||
Model description Function symbol
External dimensions Hole size
