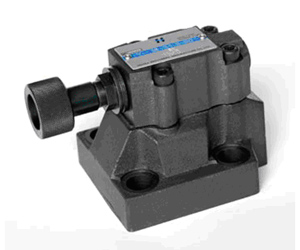

Pilot-operated reducing valve
The YJ pilot-operated reducing valve is controlled by the pilot and mainly
used to reduce the pressure of a certain loop in the hydraulic system. With
plate or pipe mounting options, it is suitable for hydraulic systems with a
large flow rate.
Technical specification
|
Model |
03 |
06 |
10 | |
| Flow (l/m) | Threaded Connectiond |
80 |
- |
300 |
| Plate Connectiond |
80 |
200 |
300 | |
| Hydraulic Fluid |
Mineral Oil, Phosphate | |||
| Viscosity (mm2/s) |
2.8~100 | |||
| Fluid Temp. () |
-20~70 | |||
| Working Pressure (MPa) |
To31.5 | |||
|
Inlet Pressure B (MPa) |
To31.5 | |||
| Inlet Pressure A (MPa) |
0.3~31.5 1~31.5 | |||
| Back Pressure Y (MPa) |
31.5 | |||
Model description
Function symbol
Mounting dimensions
Plate size
