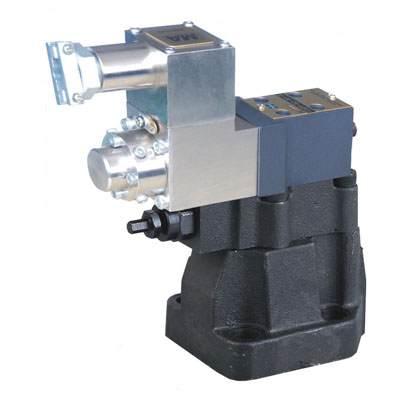

Explosion isolation proportional pilot-operated reducing valve
Comprised of a proportional directly-operated relief valve, a pressure limiting valve and a reducing valve, this explosion isolation valve controls system pressure according to the value of input current.
Technical specification
|
Model |
03 |
06 |
10 |
|
Maximum Pressure (MPa) |
35 |
35 |
35 |
|
Maximum Flow ( l/min) |
100 |
200 |
400 |
|
Minimum Flow (l/min) |
3 |
3 |
3 |
|
Secondary Pressure Regulating Range (MPa) |
See Model Description
| ||
|
Rated Current (mA) |
750 |
750 |
750 |
|
Coil Resistance () |
10 |
10 |
10 |
|
Hysteresis (%) |
<3 |
<3 |
<3 |
|
Repeatability (%) |
1 |
1 |
1 |
|
Weight (Kg) |
4.8 |
6.3 |
8.6 |
