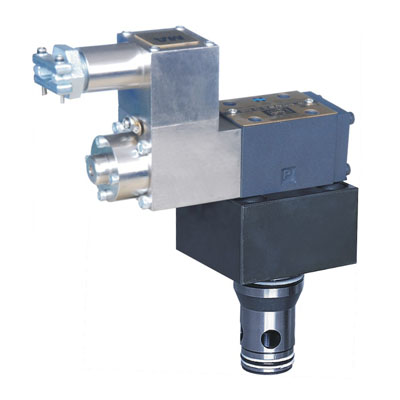

Explosion isolation proportional cartridge throttle valve

This explosion isolation valve is a cartridge type, 2-way proportional throttle valve, which controls the internal flow rate proportionally according to the electric current . With a quick response time and good dynamic performances, it is widely used in injection moulding machines, blowing machines, die-casting machines and equipment in steel works.

Technical

Model	25	32	40	50
Maximum pressure(MPa)	31.5
Maximum Flow (l/min)	325	500	700	1000
Hysteresis (%)	<5
Repeatability (%)	1
Filtration Accurancy (um)	20
Hydraulic Fluid	Mineral Oil, Phosphate
Viscosity (mm2/s)	2.8~380
Fluid Temp. ()	-20~70

Model instruction Code symbol
