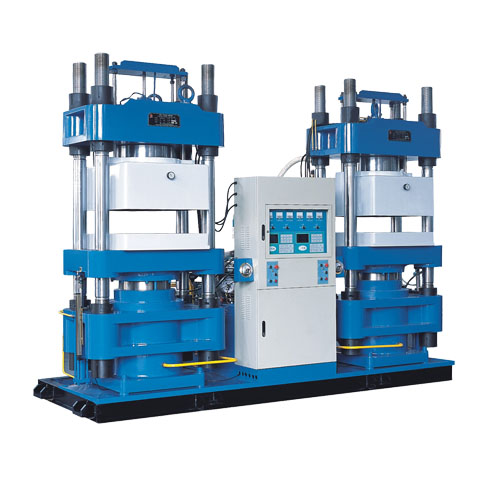

Vacuum vulcanizing press for butyl rubber medical stoppers(double set)
Items |
Unit |
Parameter |
Clamping force |
kN |
3500 |
Max.System pressure |
MPa |
23 |
Clamping Stroke |
mm |
400 |
Rapid Clamping Speed |
mm/s |
40 |
Max Mould Thickness |
mm |
240 |
Heating Plate Size |
mm |
700760 |
Heating Plate Spacing |
mm |
300550 |
Max. Temperature |
250 | |
Vacuum Cover Stroke |
mm |
250 |
Motor Power |
kW |
5.5+5.5 |
Heating Power |
kW |
22.8+22.8 |
External Dimension (LWH) |
mm |
40102010(28503350) |
Weight |
kg |
38002550(24502900) |
Weight |
kg |
15000 |
Oil Tank Capacity |
L |
500 |
Flow of machine motions
3RT
1 initial state
2 M2the second mould platen goes down
3 M1the first mould platen goes down
4 load the mould, main cylinder goes up rapidly
5 vacuum cover goes down, suck out the air, increase pressure and expel bubbles out
6 vacuum cover goes up, vulcanizing
7 open the mould, push out the mould
8 M1the first mould platen goes up
9 M2the second mould platen goes up and opens the mould
4RT
1 initial state
2 lower platen(L) goes down,M2the second mould platen goes up, M3the third mould platen goes forward with the slide plate
3 M2the second mould platen and M1the first mould platen go down
4 load the mould, main cylinder goes up
5 vacuum cover goes down, suck out the air, increase pressure and expel bubbles out
6 vacuum cover goes up, vulcanizing
7 open the mould, push out the mould
8 M1the first mould platen goes up
9 M2the second mould platen goes up and opens the mould
10 M3the third mould platen goes back with the slide plate
11 M2the second mould platen goes down and locating
12 lower plate (L)goes up ,take out the finished product, clean the mould.
