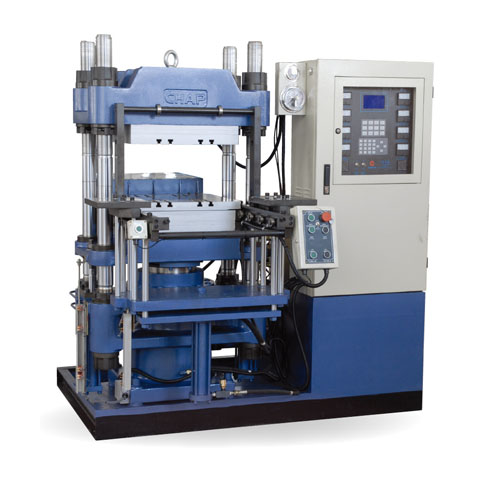

Single layer plate vulcanization press with opeing the mould
Items |
Unit |
Parameter |
Clamping force |
kN |
2000 |
Max.System pressure |
MPa |
23 |
Clamping Stroke |
mm |
300 |
Rapid Clamping Speed |
mm/s |
50 |
Heating Plate Size |
mm |
550650 |
Heating Plate Spacing |
mm |
180480 |
Max. Temperature |
|
250 |
Number of Work layers |
Single-Layer | |
Ejector Stroke |
mm |
300 |
Ejector Force |
kN |
60 |
Motor Power |
kW |
5.5 |
Heating Power |
kW |
14 |
External Dimension (LWH) |
mm |
205025002000 |
Weight |
kg |
4500 |
Optional |
Crock Ejection organ | |
Oil Tank Capacity |
L |
360 |
Flow of machine motions
2RT
1initial state
2start-up(ejector reposit)
3load the mould
4main cylinder goes up rapidly
5main cylinder goes up slowly, increase pressure, expel bubbles out and vulcanizing
6open the mould
7push out the mould
8eject the mould, pick up the finished products
3RT
1initial state
2M2the second mould platen goes down
3M1the first mould platen goes down
4load the mould
5close mould, increase pressure , expel bubbles out and vulcanizing
6open the mould,push out the mould
4RT
1initial state
2lower platen(L) goes down,M2the second mould platen goes up, M3the third mould platen goes forward with the slide plate
3M2the second mould platen and M1the first mould platen go down
4load the mould, main cylinder goes up and increase the pressure, expel bubbles out and vulcanizing
5open the mould, push out the mould 6M1the first mould platen goes up
7M2the second mould platen goes up and opens the mould
8M3the third mould platen goes back with the slide plate
9M2the second mould platen goes down and locating
10ower plate (L)goes up ,take out the finished product, clean the mould.
