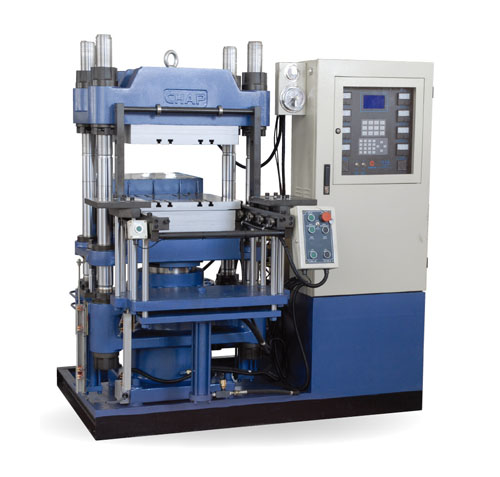

Single layer plate vulcanization press with opeing the mould
Items |
Unit |
Specification |
Clamping force |
kN |
1000 |
Max.System pressure |
MPa |
23 |
Clamping Stroke |
mm |
300 |
Rapid Clamping Speed |
mm/s |
50 |
Heating Plate Size |
mm |
450450 |
Number of Work Layers |
layer |
2 |
Layer Spacing |
mm |
150 |
Max. Temperature |
|
250 |
Front Ejector Stroke |
mm |
300 |
Back Ejector Stroke |
mm |
250 |
Max Ejector Force |
kN |
60 |
Motor Power |
kW |
4 |
Heating Power |
kW |
11.7 |
Weight |
kg |
6800 |
External DimensionLWH |
mm |
150014301660 |
Weight |
kg |
2720 |
Optional |
without device for front- |
back ejector mechanism |
Oil Tank Capacity |
L |
250 |
Flow of machine motions:
2RT
1initial state 2start-up(ejector reposit) 3load the mould 4main cylinder goes up rapidly 5main cylinder goes up slowly, increase pressure, expel bubbles out and vulcanizing 6open the mould 7push out the mould 8eject the mould, pick up the finished products
