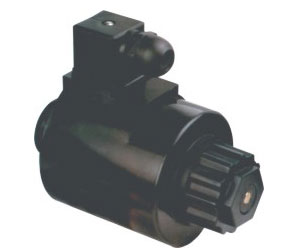

Series wet valve solenoid
Attention:
1. The manual push rod at the solenoid end may be used during hydraulic system testing,with automatic reset functions.
2. Inlet O-Ring must fully comply with GB1325-76 Standards.
3.Use DC magneto-electric multimeter for electrical measurement.
4. Notes For Plug Use
a) Remove hollow fastening crew from inside cover, tighten it again after wired to the base.
b) A rubber ring is provided at cable entrance, the plug wiring will be tightly clamped
when the threaded cover is tightened.
(Note: 3-wire cable should be used for connection)
Technical specification
Mode |
MF*9-22YC |
MF*9-37YC |
MF*9-90YC | ||
Rated Attraction Force (N) |
22 |
37 |
90 | ||
Rated Travel (mm) |
2.8 |
2.8 |
3.6 | ||
Minimum Total Travel (mm) |
6.5 |
6.5 |
7.8 | ||
Rated Voltage (DC/V) |
1224110220 |
1224110220 |
1224110220 | ||
Excitation Power(Reference) (W) |
35 |
35 |
46 | ||
Nominal Fluid Pressure (MPa) |
10 |
10 |
10 | ||
Solenoid Action Time |
Close (ms) |
45 |
45 |
70 | |
Open ms) |
20 |
20 |
40 |
External dimensions
External dimensions
